Akira's CYCLOCROSS BIKE
2015
Build / 製作：Osamu Fukuda / 福田 修
Paint / 塗装：COOK PAINT WORKS
Assemble / 組立：BICYCLE STUDIO MOVEMENT
SPECIFICATIONS

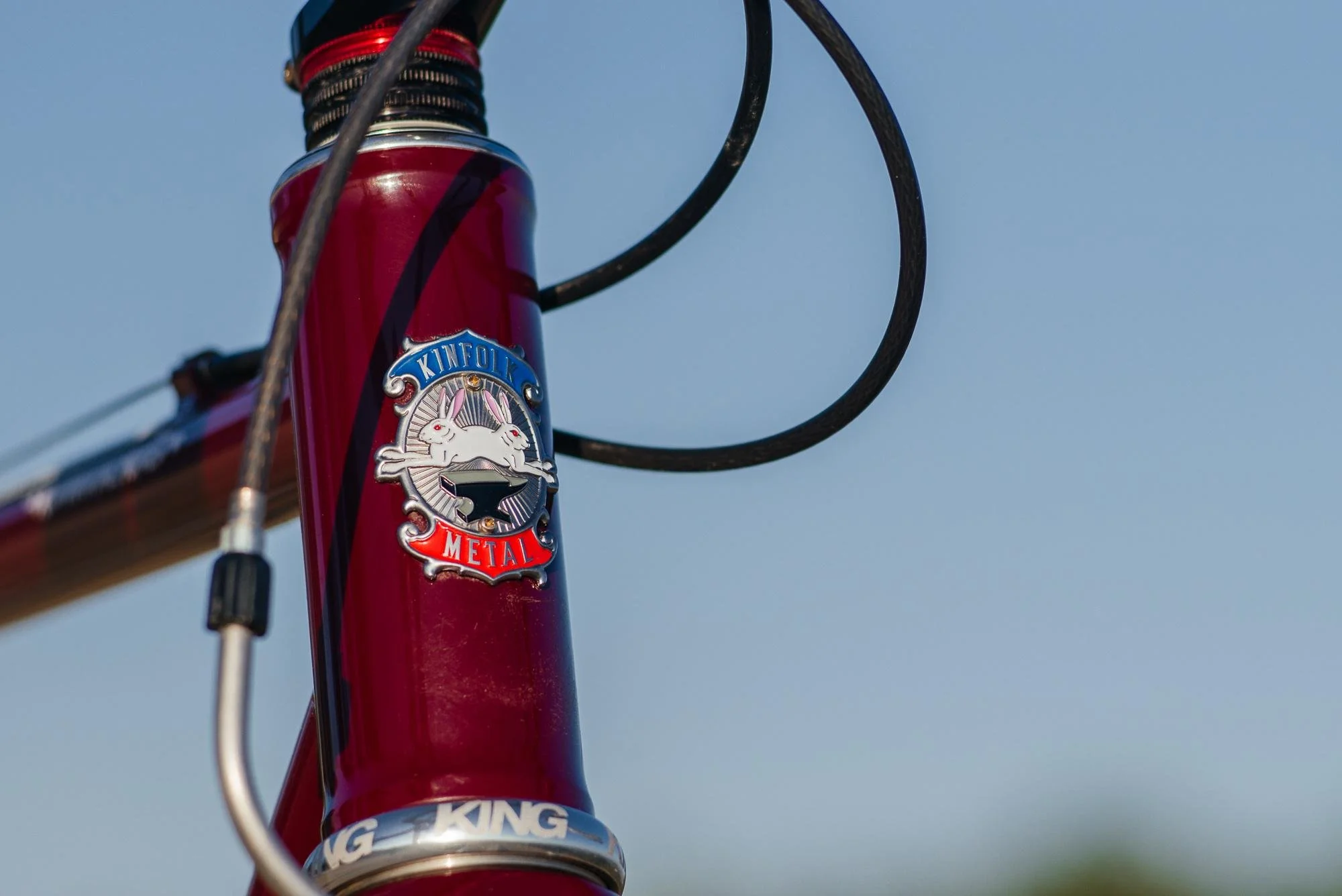

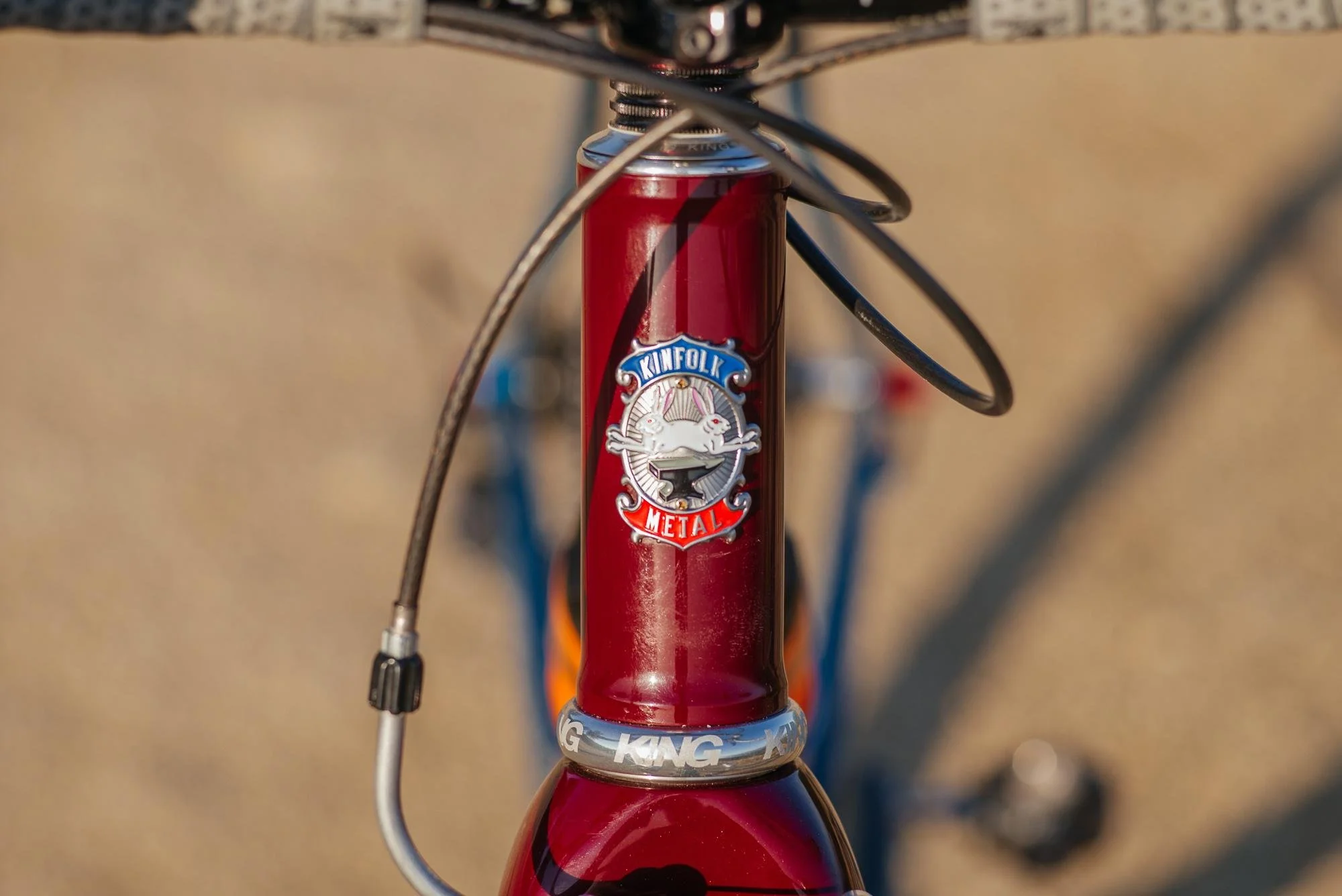

| Head Tube | 1.5″(44mm) Straight |
| Fork Column |
1.5″ Tapered
|

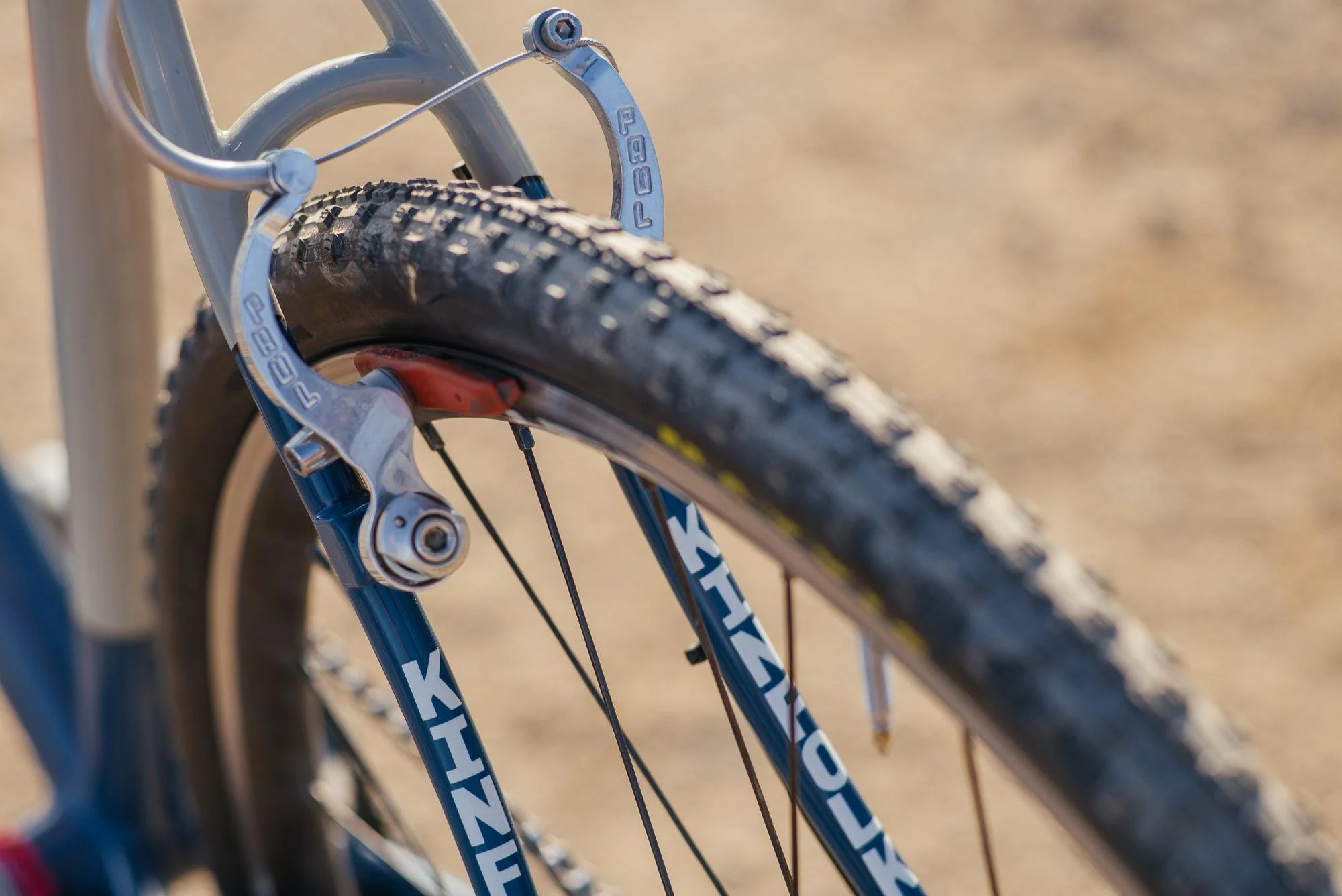

| Brake Type | Canti brake |
| Wheel Size | 700c |
| MAX Tire Clearance | 700x48c |
| Front Hub Spacing | 100x9mm, QR |

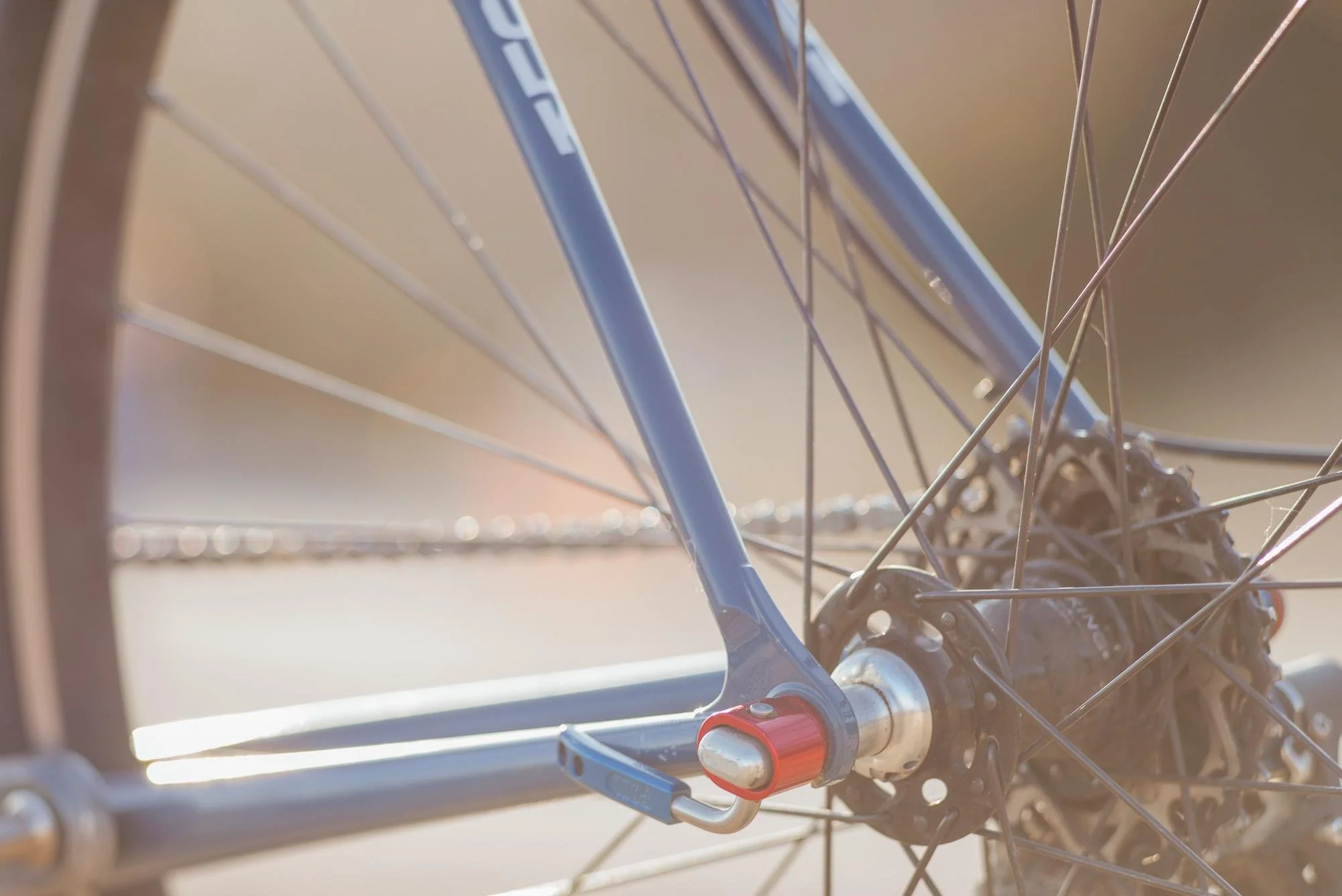

| Rear Hub Spacing | 130x10mm, QR |
| BB Shell | 68mm BSA |
| Seatpost Size | 27.2mm |
| Options | Custom painting |
GEOMETRY
| Reach | |
| Stack | |
| Top Tube | 534 |
| Head Angle | 71.5° |
| Seat Angle | 74° |
| Head Tube | 130 |
| Seat Tube | 540 |
| Wheelbase | 1010.5 |
| Front Center | 590.5 |
| Chainstay | 420 |
| Standover | |
| BB Drop | 65 |
| BB Height | |
| Fork AC | 395 |
| Rake | 47 |
ORDER
For custom frame orders and inquiries, please contact your nearest KINFOLK BICYCLES DEALER. If you cannot find a dealer near you, please contact us directly using the contact form.
フレームのカスタムオーダー・ご相談は、お近くのKINFOLK BICYCLES DEALERまでお問い合わせください。お近くのディーラーが見つからない場合、またはディーラーでの取り扱いが無い場合は、直接コンタクトフォームよりご連絡ください。
Photo By John Watson ©︎ THE RADAVIST
